Wood plastic composite PVC WPC foam board making machine

Qindao Tongsan Hegu is professional for WPC extrusion machine.

We have WPC R&D and debugging team.

Customized machine according to customer's requirements.

Turnkey project service for whole WPC production line.

All series WPC machines in factory free testing anytime.

We help new customers succeed in WPC projects.

Thousands of production lines sold in more than 50 countries.

Choose WPC machine, choose professional manufacturer Tongsan .


Description

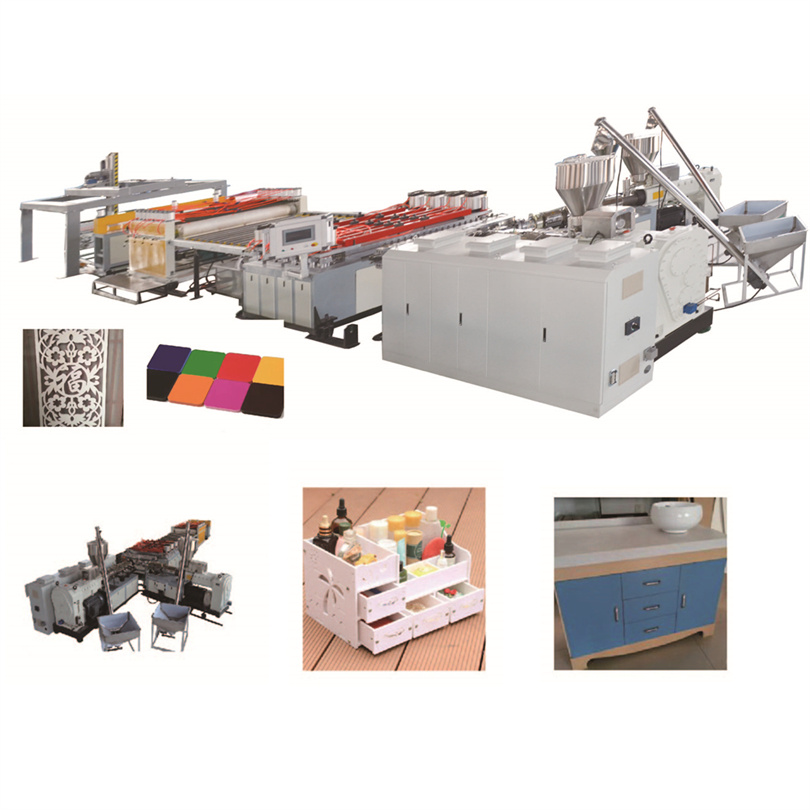

PVC WPC Skinning foam board extrusion line

This production line can continuously and steadily produce PVC WPC foam board. The PVC WPC foam board has the advantage of fireproof, waterproof, anticaustic, moisture proof, moth proof and environment friendly, etc. It is of low density, light and easy of processing. The PVC WPC foam board is now widely used in interior decoration, precast exterior wall panels, furniture making, bathroom decoration, poster board, partition, etc.

wpc FOAM BOARD MACHINE

 Main WPC Machines

1, WPC granulation machine

After get ready wood powder and recycled PP/PE plastic, the first step is mixing them with chemicals, then use WPC granulation machine to make WPC granules
SHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.

ModelL/D ratioMax.capacityMotor powerSuitable materialMax.rotating speedWood powder percentage
SHMS-6540:1200-220kg/h75kwPe+wood powder500r/min≤75%
SHMS-7540:1300-350kg/h90kwPe+wood powder500r/min≤75%
SHMS-9040:1500-600kg/h132kwPe+wood powder500r/min≤75%



2, WPC profile extrusion line

Material: recycled 30% PP/PE+70% wood powder+chemical additives.
Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..


The WPC profile extrusion line can make WPC granules into WPC products by equipping required mold, we can equip co-extrusion system and online 3D embossing device for making WPC products in high quality with wooden grain, the line also equipped with online cutting device.


ModelHGMSE-65HGMSE-80
Extruder modelSJMS65/132SJMS 80/156
Motor power37kw75kw
Mac.Extrusion capacity140-160kg/h220-250kg/h
Co-extruder(Optional)SJ35/28SJ45/28


3, PVC WPC profile machine:
Material: 50%PVC+20% wood+20% caco3+ Chemical additives.
Product: WPC door frame, WPC wall panel, WPC decoration profiles indoor.

ModelProfile WidthExtruder modelMotor powerMax.extrusion capacityCalibrating platform length
HGMSC-200200mm51/10522kw100-120kg/h4000mm
HGMSC-300300mm65/13237kw150-180kg/h6000mm
HGMSC-400400mm65/13237kw150-180kg/h6000mm
HGMSCD-300600mm65/13237kw150-180kg/h8000mm
HGMSC-600600mm65/13 or 80/15637 or 75kw150-350kg/h6000mm

PE PP PVC Wood Plastic Composite Armrest Handrail Balustrade Banisters Profiles WPC Making Machine


5,PVC WPC door machine:
Material:50% PVC+20% wood+20% caco3 +Chemical additives.
Product: Hollow Door panel, Cabinet Door, and other big profiles

ModelDoor panel widthDoor panel thicknessExtruder modelMotor powerMax extrusion capacityCalibrating mould section
HGMSM-80080020-50mmSJMS 80/15675kw350-380kg/h2
HGMSM-1000100020-50mmSJMS 92/188110kw450-500kg/h3
HGMSM-1200120020-50mmSJMS 92/188110kw450-500kg/h3


PE PP PVC Wood Plastic Composite Armrest Handrail Balustrade Banisters Profiles WPC Making Machine
6, PVC WPC board machine:
Material: 60% PVC+10% wood +20% CaCo3+ Chemical additives.
Product: Solid door panel, Furniture board, partition wall panel, decoration solid panel


ModelSJMSB-80/156SJMSB-80/173SJMSB-92/188
Board thickness  5-18mm3-30mm20-40mm
Board width1220mm1220mm1220mm
Max extrusion capacity350-380kg/h420-450kg/h500-550kg/h
Motor power75kw90kw110kw

PE PP PVC Wood Plastic Composite Armrest Handrail Balustrade Banisters Profiles WPC Making Machine

900-1220mm with PVC WPC solid foamed furniture board and solid door board making machine with CE certificate

WPC solid door board making machine for 3-45mm thickness e is used for making 30-45mm solid WPC foam board for door panel, it uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall....
