PVC / WPC profile making machine for window and door profile,ceiling,wall panel,skirting....

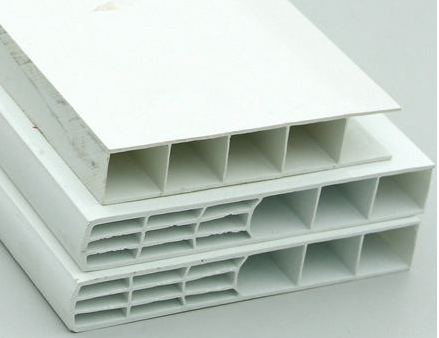

PVC / WPC profile extrusion line mainly use PVC or UPVC or PVC+wood powder to extruder profile such as building partition, cabinet door panels, window sill, skirting board, door edgeline, door jamb, window shutters, photo frame, mirror frame, furniture edge banding, door frame, door pocket, window pocket, column profile, stair handrail, floor board, decoration cladding panel, furniture, WPC pipes, etc.



Description

PVC UPVC window and door profiles making machine

This production line continuosly produce PVC WPC profiles, such as door frame and window profile,wall and ceiling panel,skirting etc.This production line consists of twin conical screw extruder, die head , calibrating table, haul off and cutting machine ,stacker.

Model

SJSZ-51/105

SJSZ-65/132

SJSZ-80/156

Max production width

200mm

250mm

600mm

Extruder capacity

100-120kg/h

150-180kg/h

250-380kg/h

Main motor power

22kw

37kw

75kw

Vacuum pump power

3kw

7.5kw*5.5kw

11kw*7.5kw

Calibrating table length

4000mm

6000mm

6000mm




Machine Details for the PVC UPVC window profiles making machines







Detailed Images

Item

Machine name

Quantity

1

Auto feeder

1 set

2

SJSZ65/132 extruder

1 set

3

ASA co extruder to get wooden grain

1 set

4

pvc seal gasket extruder

1 set

5

die head and mold

1 set

6

calibrating machine

1 set

7

hual off machine

1 set

8

cutting machine

1 set

9

product stacker

1 set

10

electric control cabinet

1 set

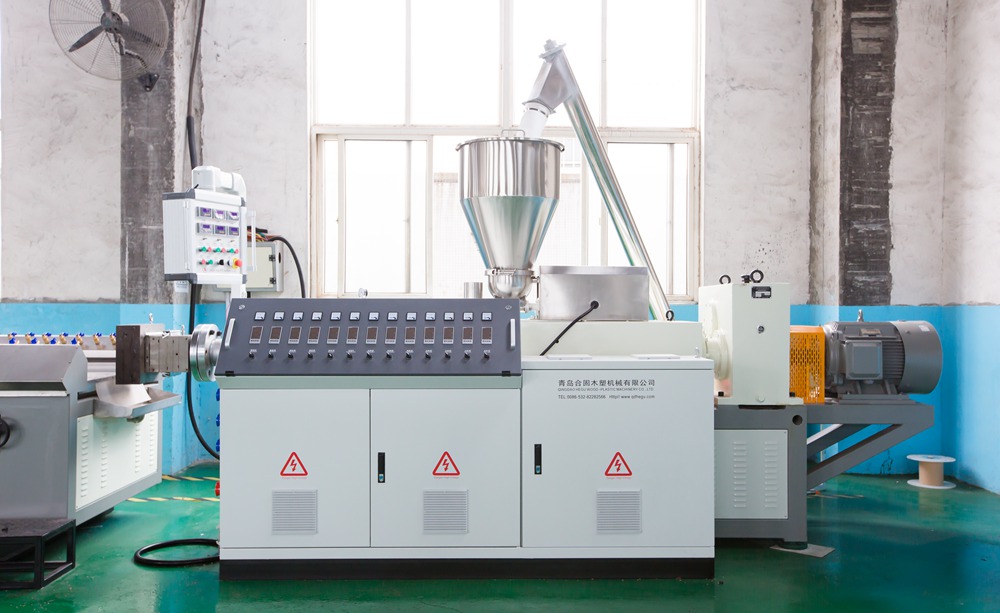

1,Extruder for PVC window profiles making machine

Conical double screw extruder specially designed for making PVC window profiles door frame.
Model: SJMS65/132 model
Main power: 37KW
Capacity: 150-240 kg/h
Max. product width: 300-600mm

Extruder for PVC window profiles making machine

SIEMENS motor

ABB or Telda inverter

OMRON temperature controller

SIEMENS low voltage appliance

double screw feeding device

bimetallic screw

vertical gear box

ASA extruder

this extruder is used to produce ASA wood grain layer

2, co extrusion type

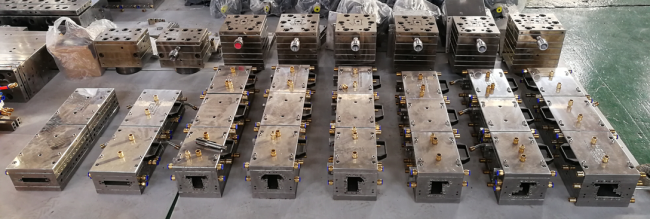

3,pvc upvc window profile mold

the mould material is 3Cr17
calibrator length to be 300mm*3 piece or 300*4 piece or design according to product
and the water cooling tank will be 2000mm*2 pcs or 3000mm*2 pcs or design according to product


4,calibrating machine PVC window profiles making machine

Length of table: 6meter or 8meter customized
width of table: 1100mm, valiable inner width is 600mm
material of table: stainless steel
cooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets
water pump: 2.2kw*1 set

5,haul off machine for PVC window profiles making machine

Haul off type: double caterpillar

length of haul off: 2.4 meter control of haul off: frequency control

motor : 1.5 kw   gearbox: double gearbox




Cutting machine for PVC window profiles making machine

cutting method: automatic cutting

cutting control: PID control

Length: fix length cutting

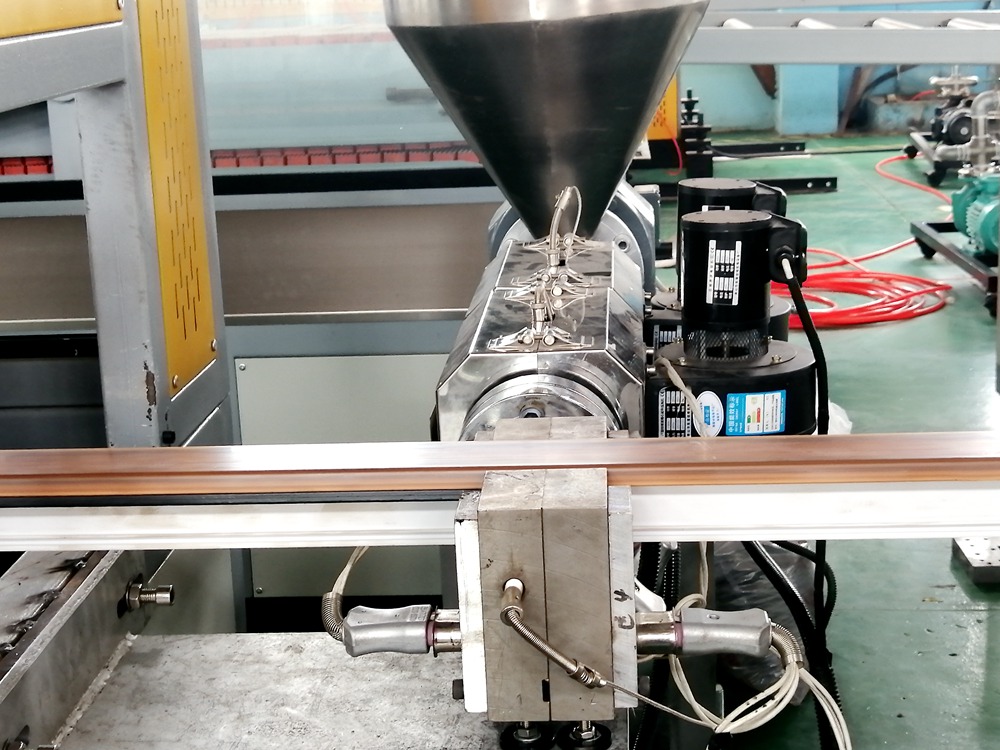

pvc seal gasket extruder,this extruder used to extrude pvc seal gasket online
