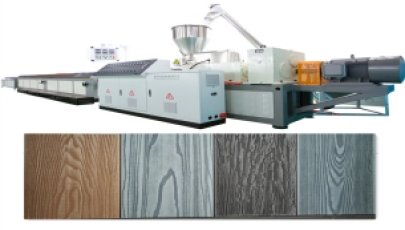

HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC profile. The WPC profile adopts two -step production process. The granulating machine make WPC pellets using PP/PE recycled materials, wood powder and auxiliary agent. Then use this production line produce WPC profile.Customers can choose embossing machine for the production line to achieve 3D pattern performance.Customers can also make PE WPC single color or double color co-extrusion profile by adding extruders.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.


Description

Exterior wall cladding WPC plank production machine line using recycled PP PE plastic

Machine

Capacity

Application

Wood/husk/straw powder making machine

300 kg/h

For making the wood/husk/straw into powder size, it needs wood chipping,wood crushing, Wood milling and wood drying process

PP/PE plastic recycling machine

300 kg/h

For recycling PP/PE wastage, it needs crushing, washing and drying process

WPC mixing machine

500 kg/h

mixing the material according to the formula, generally it can be max 70% wood powder

WPC granulation machine

400 kg/h

Making the material into WPC granules by hot granulation.

WPC profile extrusion line

150 kg/h

making the WPC Profiles by extrusion and moulding, such as decking, wall panel, post, fence. you can make different products by changing mold

WPC co-extruder

15kg/h

for co-extrusion anti-enviroment material on surface for increasing the quality and using life

Online embossing machine


for making beautiful design on the produce surface

Sanding machine


for making the product surface with unglossy feeling

Brushing machine


for making the product surface with rough wooden feeling

Description of WPC machine/wood plastic composite machine/Plastic wood decking machine

Description of wpc products:
1, New product: The wood-plastic is a new kind of synthetic material through the process of mixing,exruding,calibrating,hualing off and cutting,
2, Material: uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material.
3, Advantages: This kind of wood-plastic are not only very similar with natural wood in appearance and feel, but also have the same characteristics as wood of excisable, planeable,sawable, unmatched grip,low bibulous rate, good moisture resistance, mothproof,mildew resistance,good resistance to acid and alkali,anti-corrosion, and it has the feature of fire resistance. The products are non-toxic,non-polluting,environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances.
4, Application: The wood-plastic products are widely used in outdoor floor, close to water construction,balcony,landscape architecture,chairs and benches, fences, interior doors and windows, furniture, etc.

WPC machine/wood plastic composite machine/Plastic wood decking machine

The wood-plastic is a new kind of synthetic material which uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material and through the process of mixing,exrusion,calibrating,drawing off and cutting. This kind of wood-plastic materials are not only very similar with natural wood in appearance and feel,but also with the same characteristics as wood of excisable, planeable,sawable, unmatched grip,low bibulous rate, good moisture resistance, mothproof,mildew resistance,good resistance to acid and alkali,anti-corrosion, and it has the feature of fire resistance.The products are non-toxic,non-polluting,environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances.The wood-plastic products are widely used in outdoor floor,hydrophilic construction,balcony,landscape architecture,chairs and benches, fences, indoor doors and windows, furnitures, etc.

Production flow

Production flow for WPC machine/wood plastic composite machine/Plastic wood decking machine

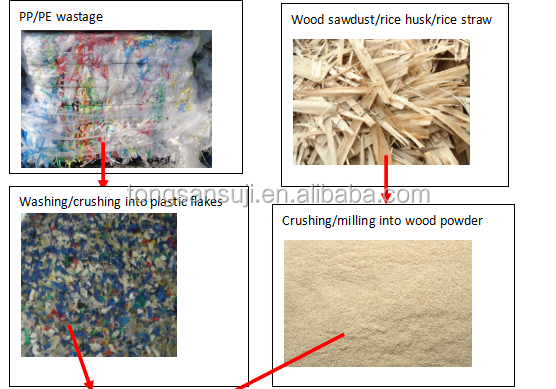

1, Preparing the material:

wood powder material: 80-100mesh wood powder, it can be made from wood sawdust, rice husk, rice straw, wheat husk and straw, cotton staw and agriculture wastage. machine need is wood crushing and pulverizer machine

plastic material: recycled PP/PE plastic after washing and crushing into flakes. machine need is plastic washing and crushing line.

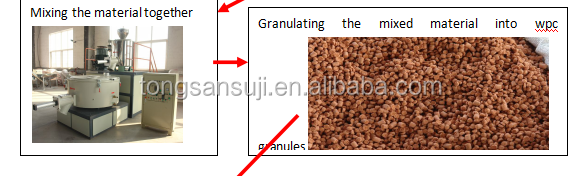

2, WPC material mixing and granulating for WPC machine/wood plastic composite machine/Plastic wood decking machine

Mixing: put all the material into the mixing machine, such as PP/PE recycled flakes, wood powder, chemical additives

Granulating: it is important to use a high quality granulating machine to make WPC granules, moisture exhuasting system is necessary for granulating process.

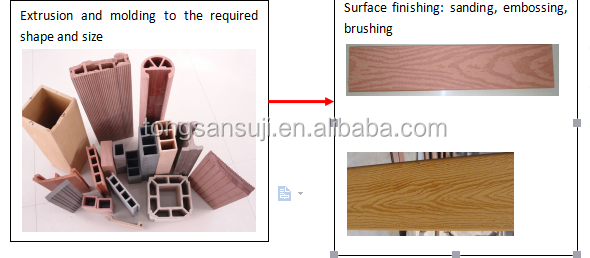

3, WPC products extrusion-molding-surface treatment

Extrusion and molding:Our conical double screw extruder is specially designed for high quality WPC products extrusion, it can make  WPC material fully mixed and melted and uniform,equip with good deisgned mold and calibration, online cutting device, our Wood plastic WPC profile machine can make good WPC products, such as decking prodfiles, garden profiles, chair profiles, pergoza profiles, railing system profiles.

Surface treatment: sanding, brushing and embossing process can make the WPC products with nature wooden grain which is good accepted by customers.

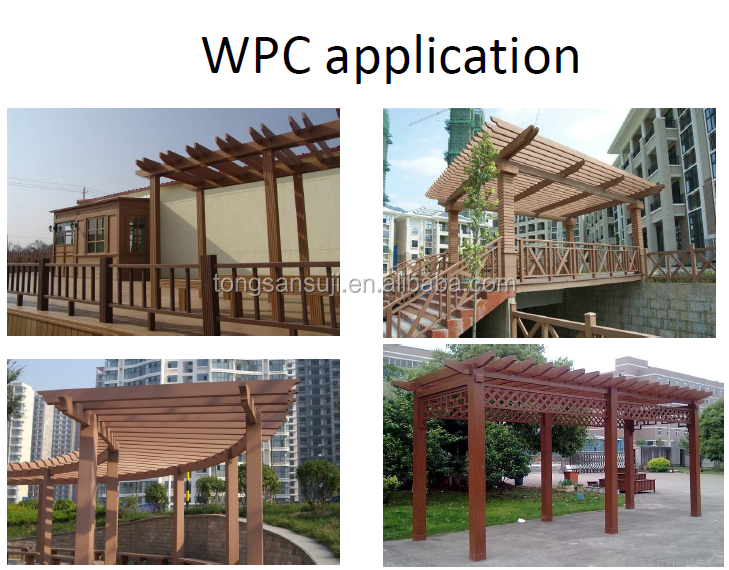

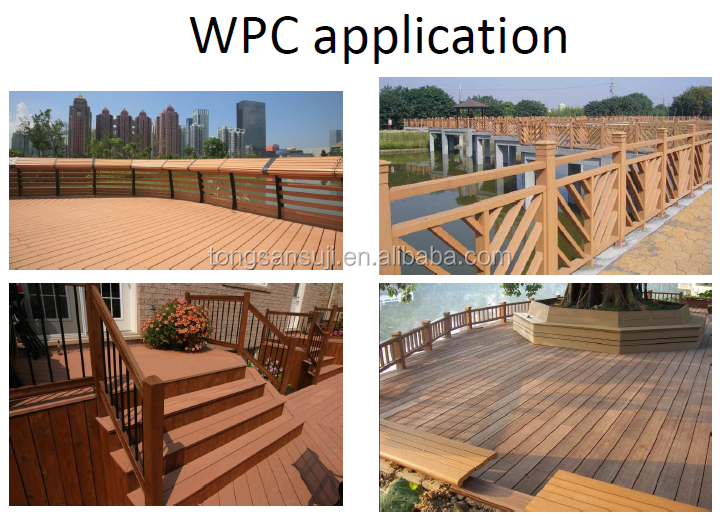

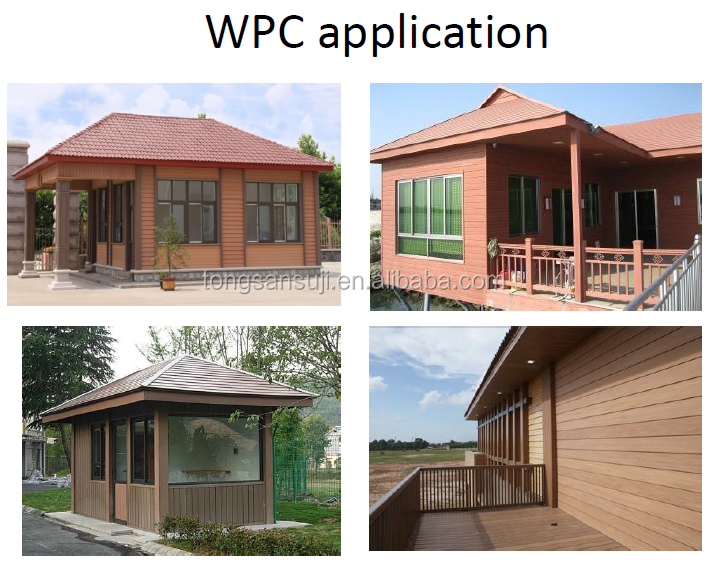

WPC application
