SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, andsmooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).

Description


1 Normal speed single wall corrugated pipe machine

This production line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.

Model

Pipe diameter

Extruder model

Motor power

Production speed

Mold pairs

Vacuum pump

(Optional)

SJ-14

5-14mm

SJ-45

11KW

6-8m/min

42 paris


SJ-32

10-32mm

SJ-50

15KW

5-12m/min

50 pairs

1.5kw

SJ-50

16-50mm

SJ-65

30KW

3-10m/min

50 pairs

2.2kw

SJ-63

16-63mm

SJ-65

30KW

3-10m/min

50 pairs

2.2kw

SJ-110

32-110mm

SJ-75

37KW

3-6m/min

72 pairs

5.5kw

(1)Single screw extruder with auto feeding machine.

Extruder size according to different requirements of pipe diameter.
Motor power:30kw
Motor brand:Simens
Temperature controller:Omron
Frequency inventer:ABB

(2)Pipe forming machine with forming mould

The forming machine can make vacuum type and normal type.
Vacuum type is suitable for making the corrugated pipe which with joint. Like washing machine pipe, shisha hookah hose etc.

(3)Double station winder

We can provide the whole line for corrugated pipe making machine.Such as ,the automatic corrugated pipe winding machine which
adopt polishing rod wire traverse for winding displacement.The automatic cutting machine is a special cuter for the car harness
single wall corrugated pipes.The automatic tapping machine is special used for car harness and electrical wire protective
conduit.The automatic shrinkable device for the single wall corrugated drain pipe.


2.High speed single wall corrugated pipe machine

High speed single wall corrugated pipe making machine can produce PP PE PVC EVA PA etc material single wall corrugated pipe continuously.

We designed new technology,replace the traditional chain forming machine.The appearance and preceision of single wall corrugated pipe have improved greatly.

The production line is driven by gears,and the mould runs in the track.

It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.

Model

Pipe diameter

Extruder model

Model power

Production speed

Mold pairs

Vacuum pump

(Optional)

SJ-14

4.5-13mm

45/28

11kw

12-20m/min

63

1.5kw

SJ-50

10-50mm

65/30

30kw

10-24m/min

72

2.2kw

(1)SJ-65/30 single screw extruder

The extruder consist of the screw pole, cylinder, reducer, extruder head's stand, the water and wind cooling system, the
lubricating system, temperature-controlling system, speed-changing cabinet etc.All the parts be made by reputed manufacturer and
the reputed supplier brand.
We adopt special screw for different raw material and different pipe diameter, so the raw material can be well plasticization and
get goo quality pipes.

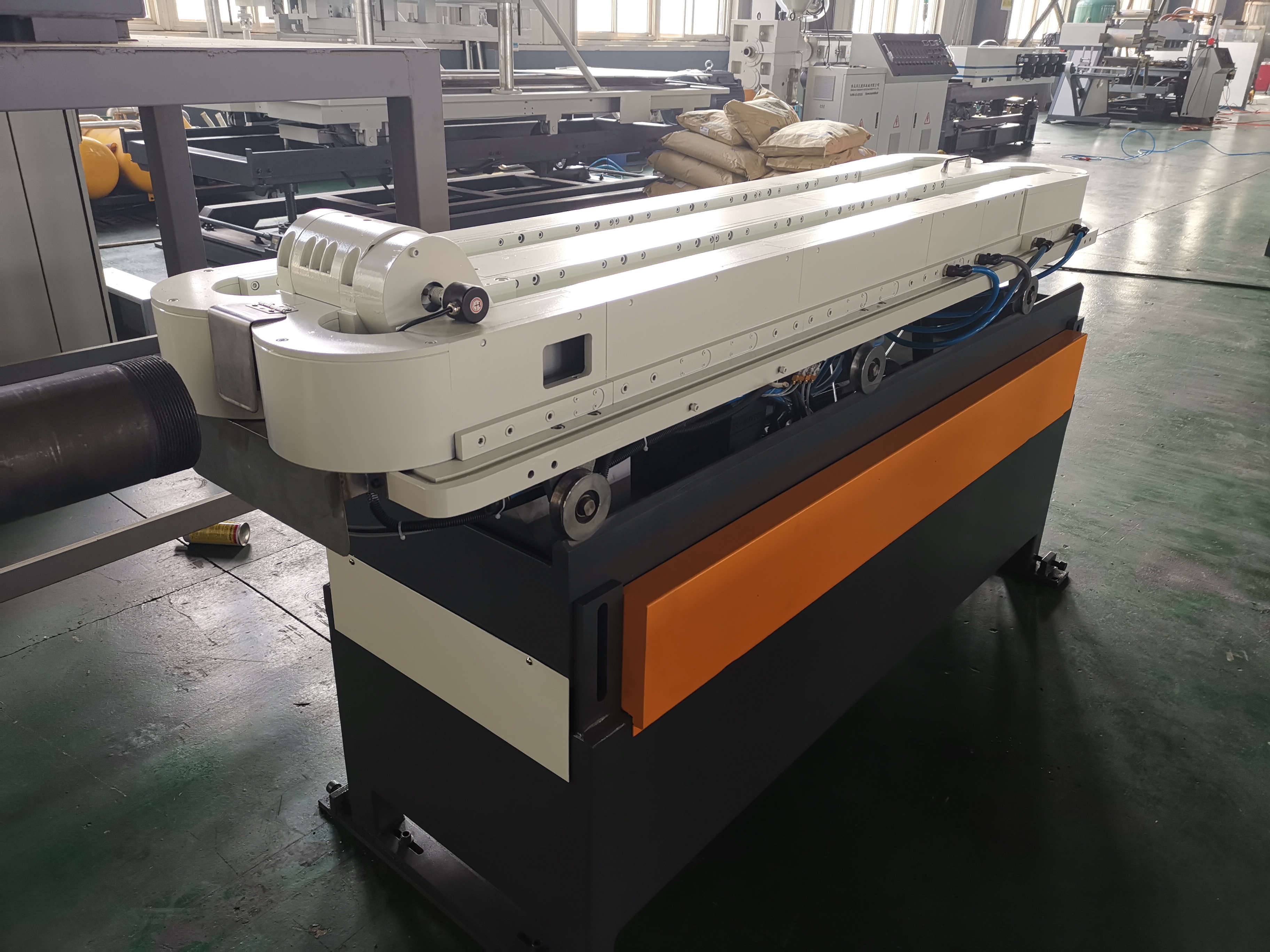

(2)High speed forming machine

The module can be cooling by both water and fan air.Efficient cooling ensures the module block cooling down quickly, so it is easy to get good quality of the single wall corrugated pipe in high speed production.

(3)Mould block

We have professional mold design technicians,mold processing machines,machining center machines.We can design and process kinds of corrugated pipe module block,corrugated pipe joint module blocks,letter engraving module blocks and other types corrugated pipe block for any kinds of corrugated pipe according customer's requirements.All the module blocks are specialized grinding apparatus
steel,which is of high hardness and strong wear resistance.

Application of corrugated pipe

1. Plastic corrugated pipe has the characteristics of light weight, strong bearing pressure, excellent bending performance and easy construction. Compared with other drainage materials, plastic bellows have the advantages of strong corrosion resistance, strong water permeability and high cost performance.

2. Plastic corrugated pipe is a kind of corrosion-resistant, water-permeable pipe. In recent years, plastic corrugated pipes have become more and more widely used. Compared with metal corrugated pipes, plastic corrugated pipes are not conductive and can prevent stray In addition, the plastic corrugated pipe has good bending performance and is convenient for construction.

3. Plastic corrugated pipes (PA, PE, PP) are widely used in the wiring connection of machine tool machinery and electrical box control cabinets, and are equipped with plastic quick connectors. It is widely used in automotive wiring harness, electronic, mechanical wiring harness and other fields, replacing the original PVC and metal sheath products, and becoming a widely used wiring harness sheath product on the market. In addition, plastic corrugated pipes are also used in municipal engineering, underground burying of rainwater in residential quarters, sewage discharge, irrigation of farmland, drainage of waterlogging, etc.
