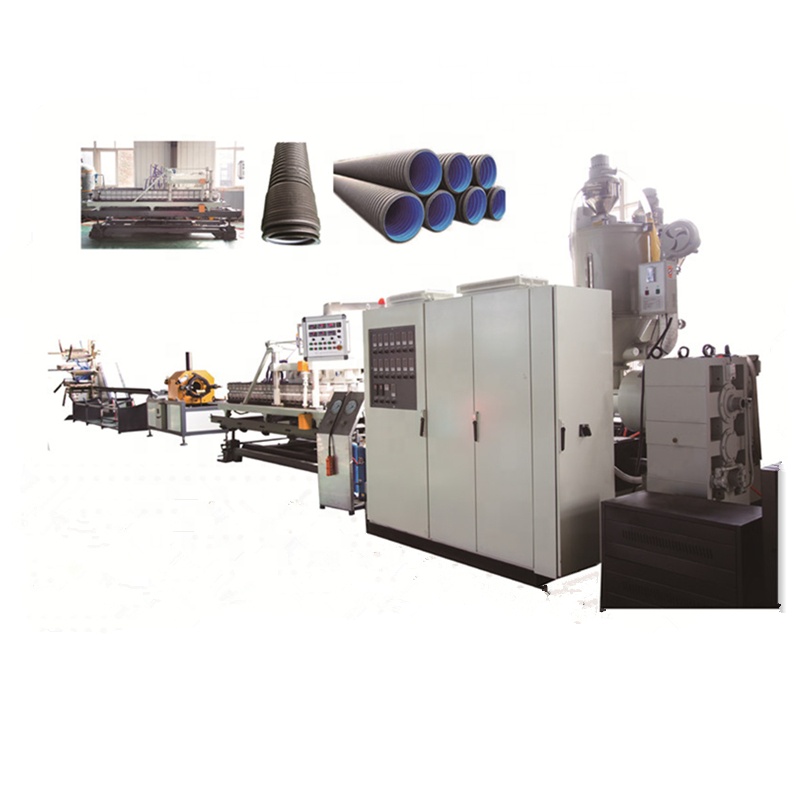

SBWG-160 double - wall corrugated pipe production line can continuously produce HDPE double - wall corrugated pipe and this line can achieve on-line belling.

The machine has the function of automatic demoulding when power is off.

The extruder adopt high-efficiency screw, the die head adopts double-layer spiral structure, mould die and core die being nitrided ,

The forming machine adopts vacuum forming type, equipped with automatic lubrication system.Forming mould is made of aluminium alloy, adopt water cooling type.

The pipe can be cut by on-line cutting machine automatically.


Description

High speed low price Plastic HDPE Double Wall Corrugated DWC Pipe Making Machine Manufacturer

Machine details:

1,Single screw extruder 2 sets with automatic loader and feeding system
2,Die head and high speed aluminium mold blocks with water cooling


3,High speed Forming machine

4, Water cooling tank
5,Automatic cutter
6,Automatic winding device

Extruder for Double wall corrugated DWC pipe machine


SJ90/30 (75KW) +SJ75/30 (45kw)

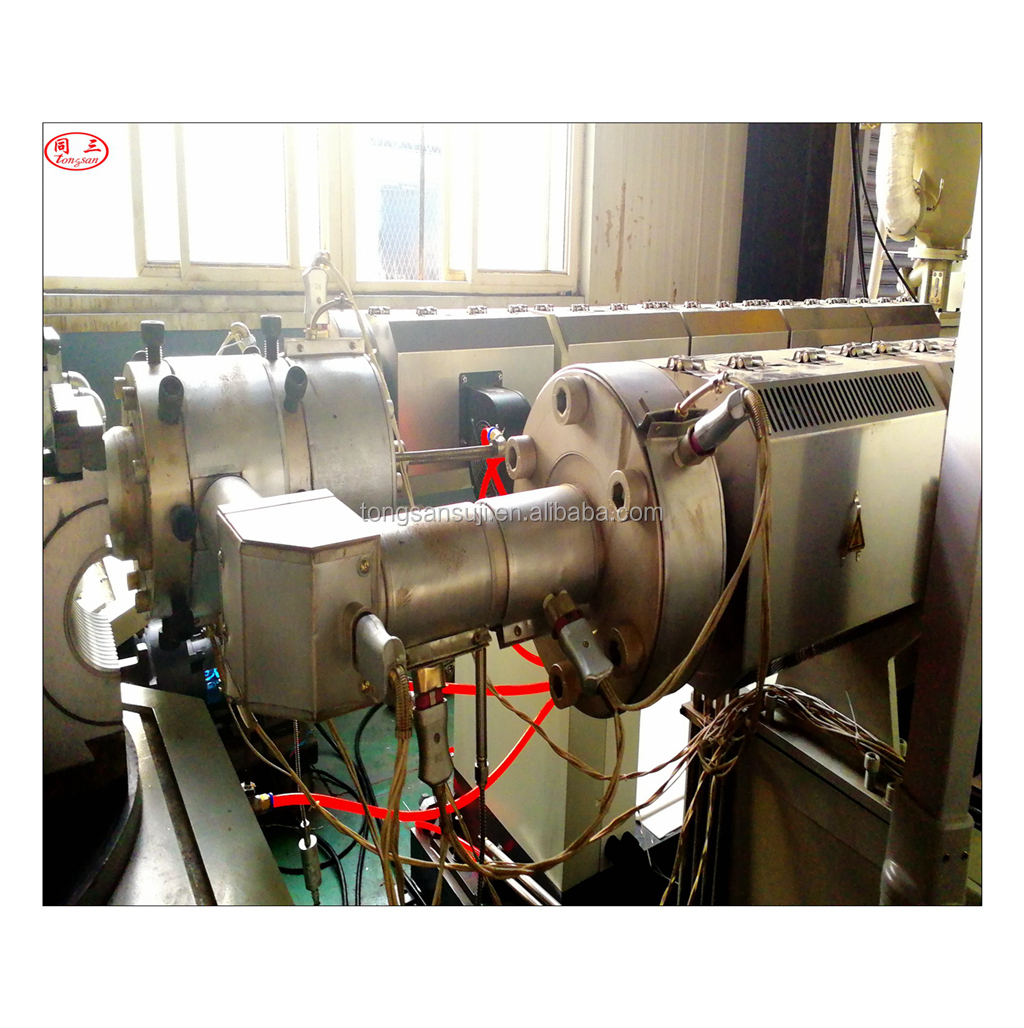

Die head for double wall corrugated pipe

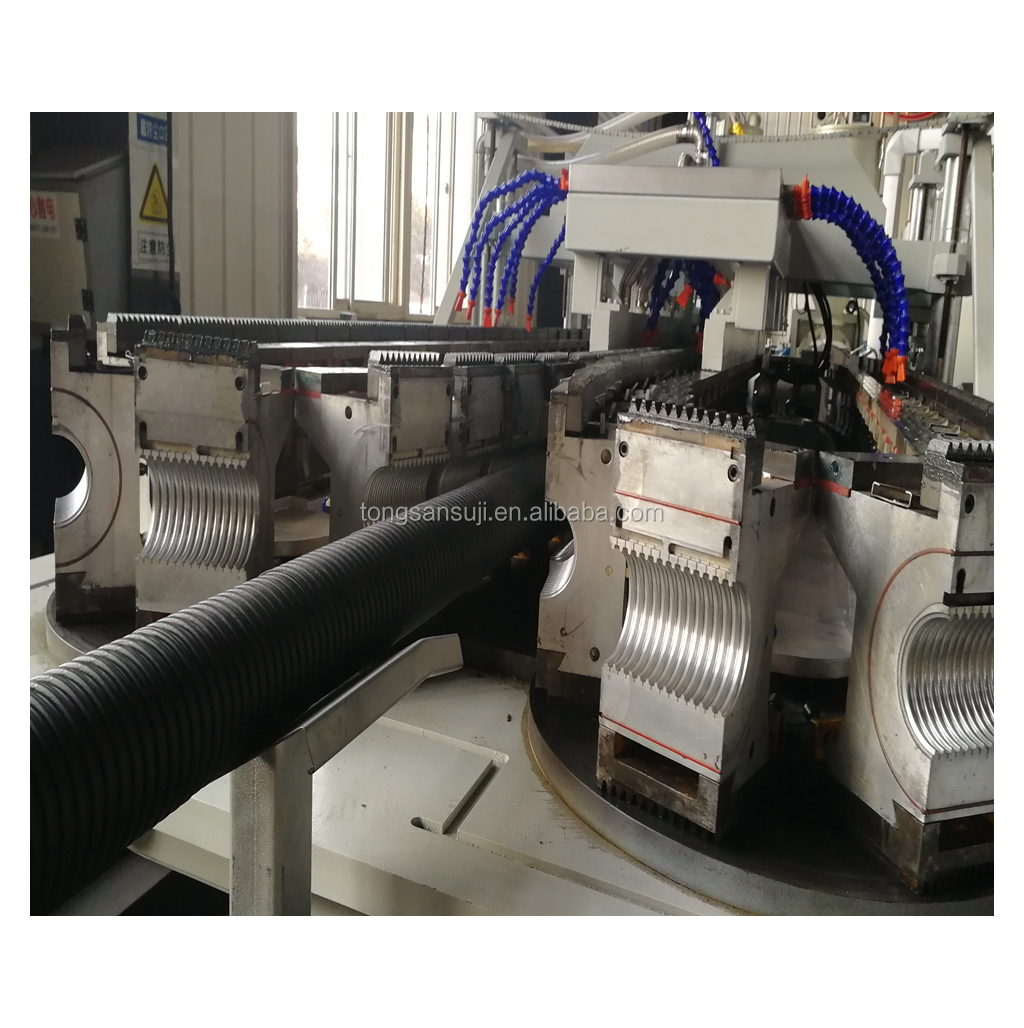

Mold blocks for HDPE double wall corrugated pipe
Mold for DWC double wall corrugated pipe machine
36 pairs, Aluminum material, inner hollow with water cooling channel, with vacuum cooling

Forming machine for DWC double wall corrugated pipe machine:

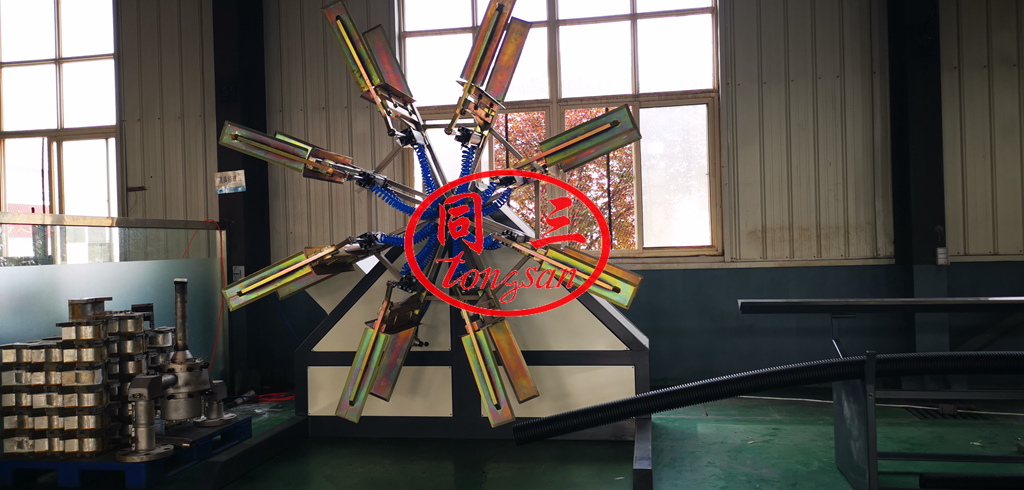

The Online Planetary Cutter The automatic winder for DWC double wall corrugated pipe
