PP correx corrugated plastic corflute hollow sheet machinery

PP correx corrugated plastic corflute hollow sheet machinery realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-3000mm, and the thickness is 2mm-12mm.



Description

 Machine Details

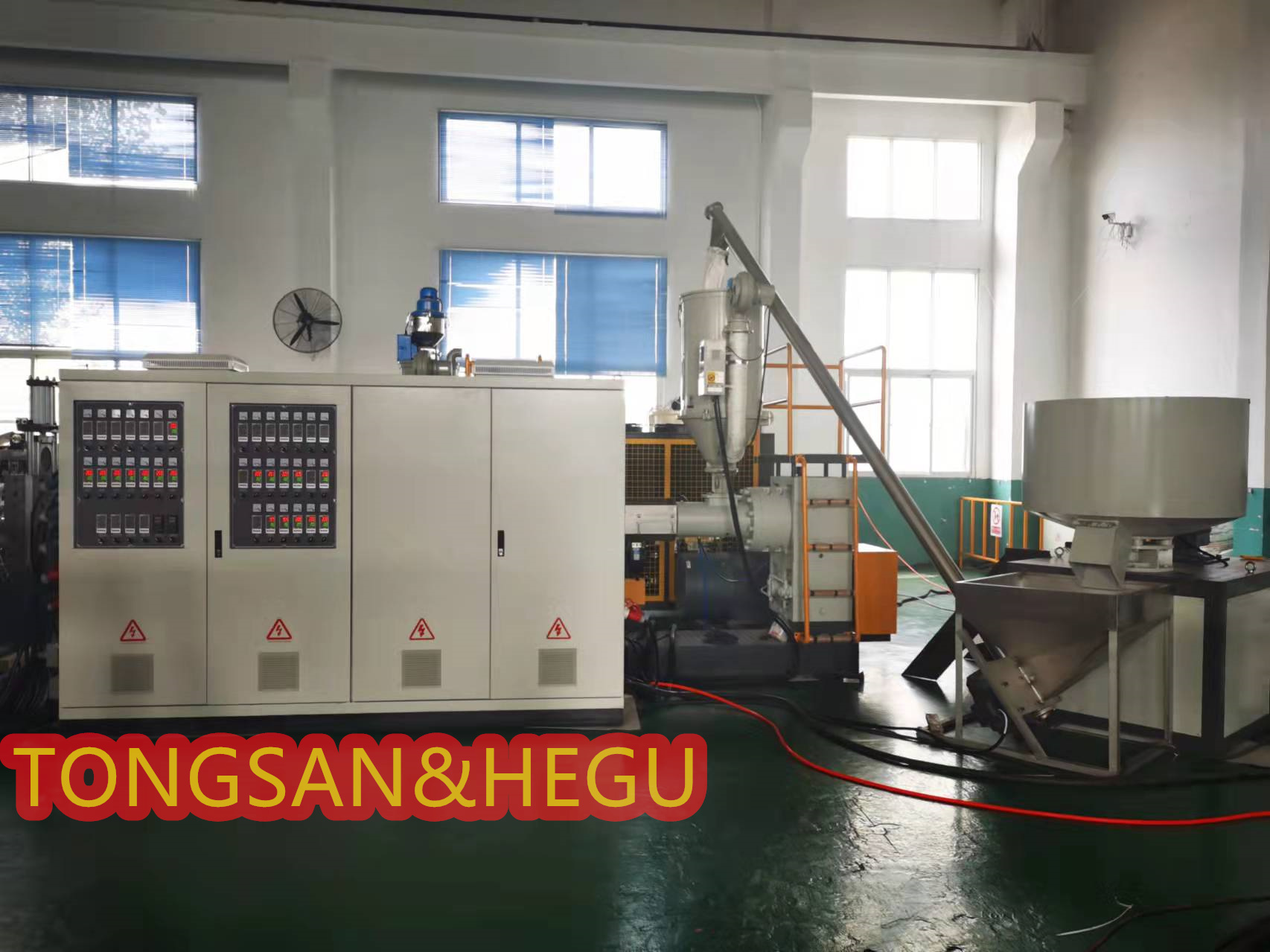

High efficiency single screw extruder

The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.
Our machine can add 70% filler to reduce cost for customer.

Mold by customized

Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

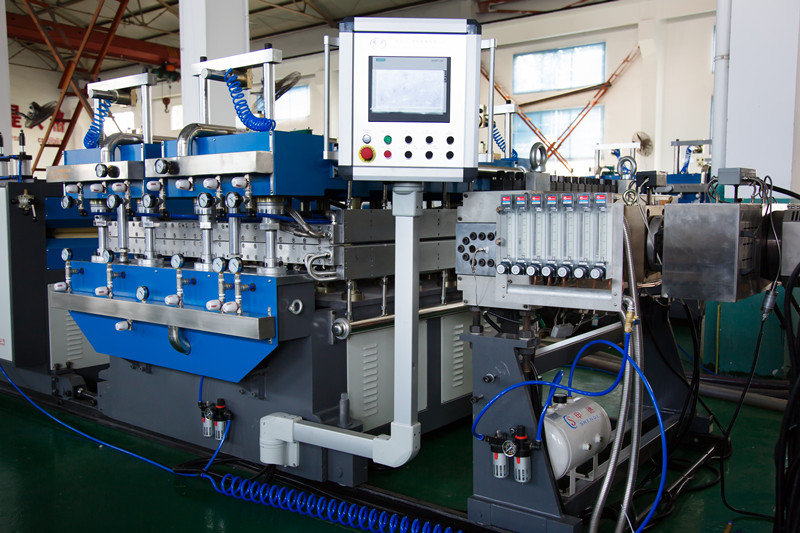

Vacuum calibrating table

Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system,which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display
system that realize even and stable vacuum degree of plate surface.

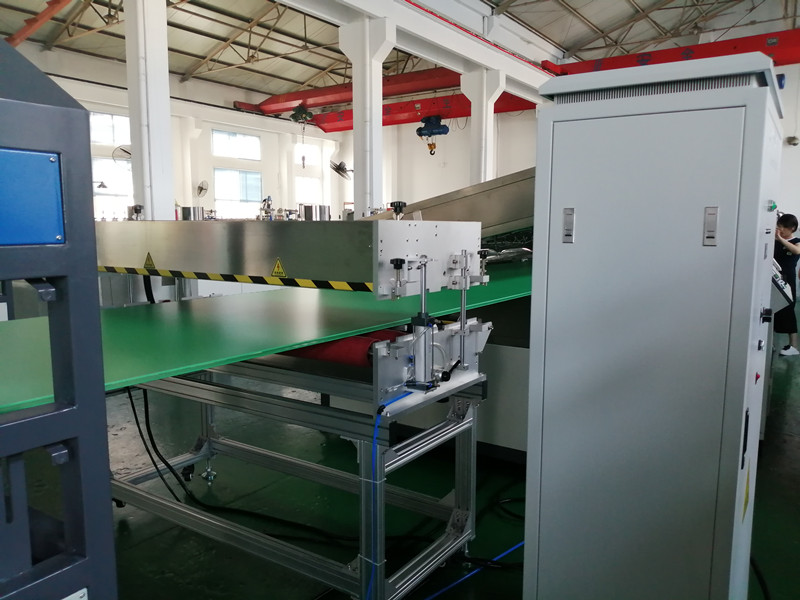

Haul-off device

There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

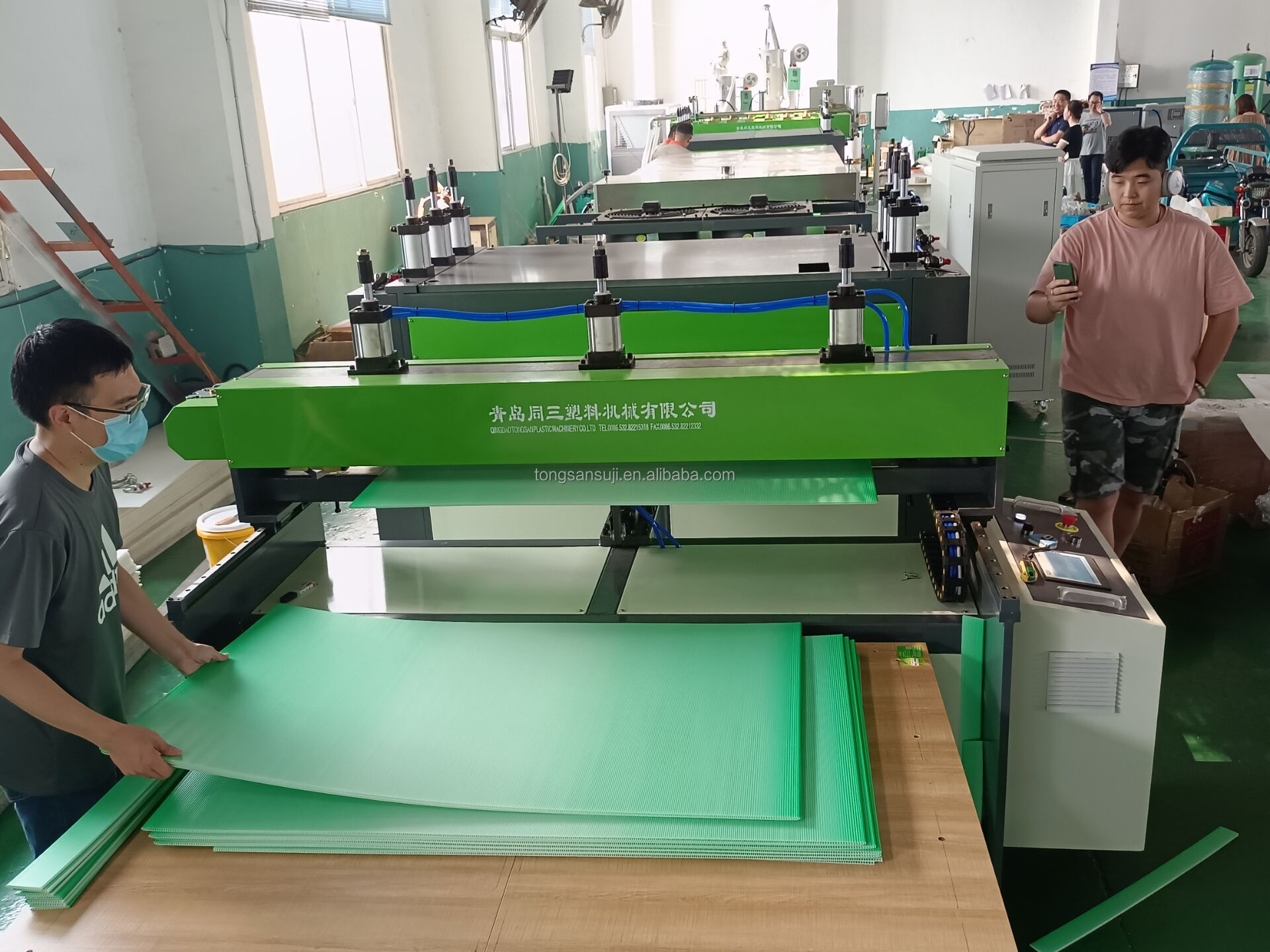

Cutter

Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.

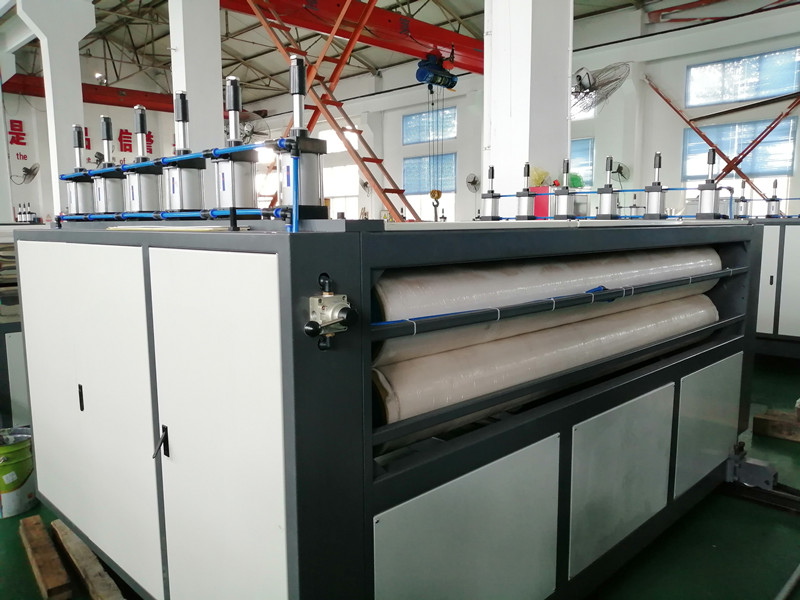

Stress remover corona treatment device

The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate

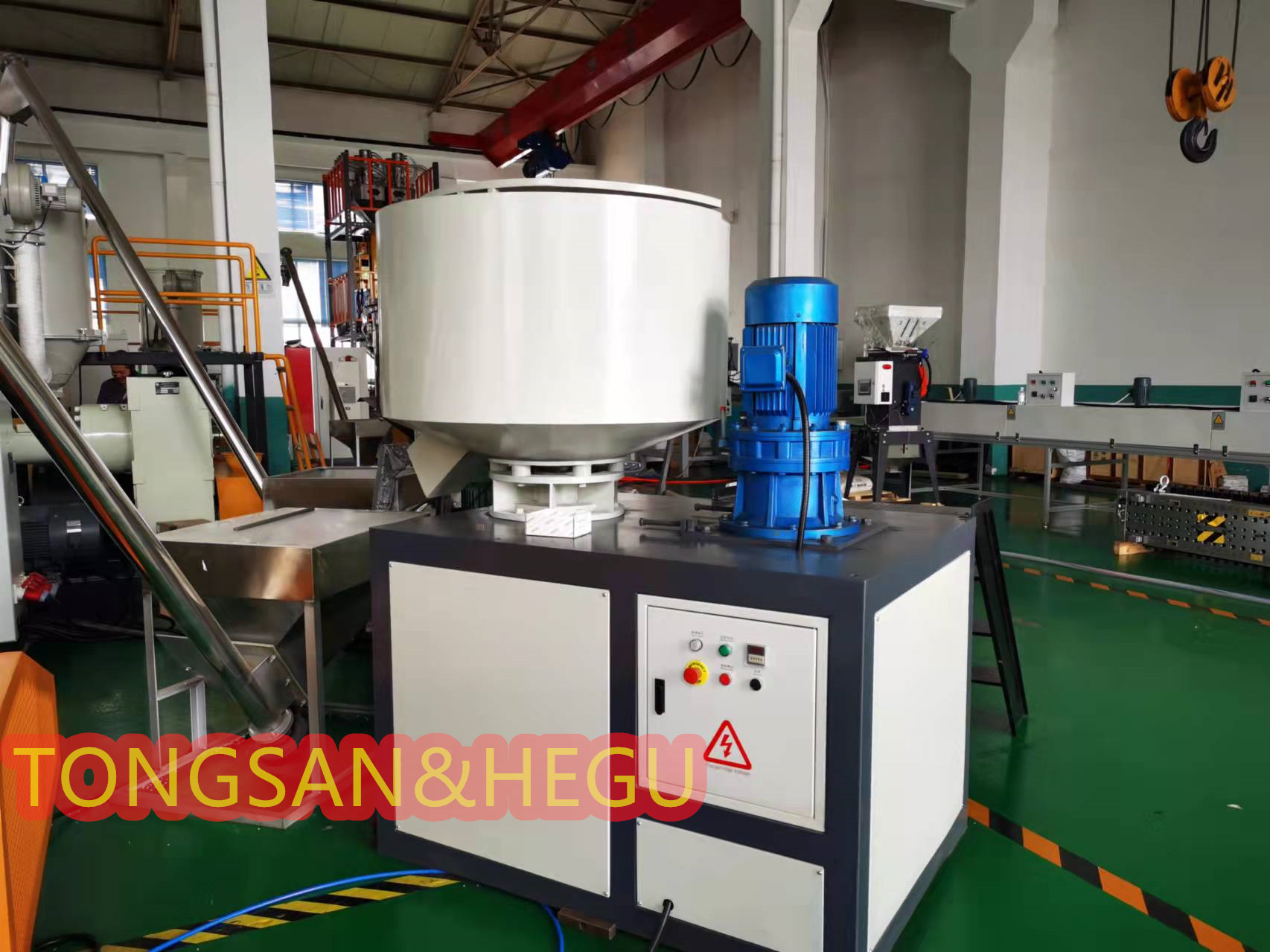

Mixer

Used for mixing PP ,filer masterbacth, color masterbacth.
The design is more user-friendly, with a ladder attached, which is easy to operate.The material will come to the extruder feeding hopper directly.

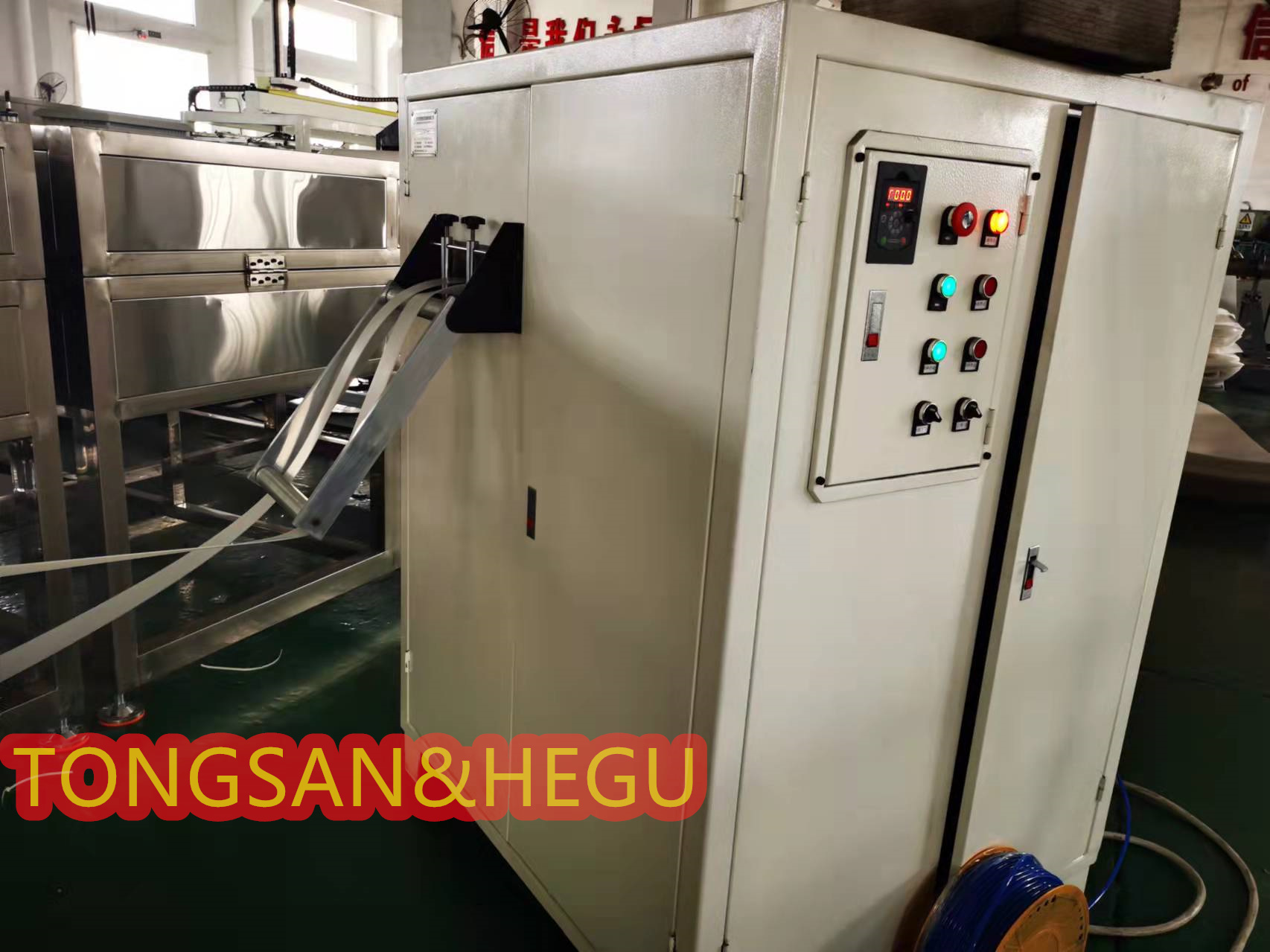

Cut wasted edge crusher

The PP hollow plate should be cut the edge ,

This cutter is connected with the production line,during the production, the cut waste edge can be cut into flake and used again.
