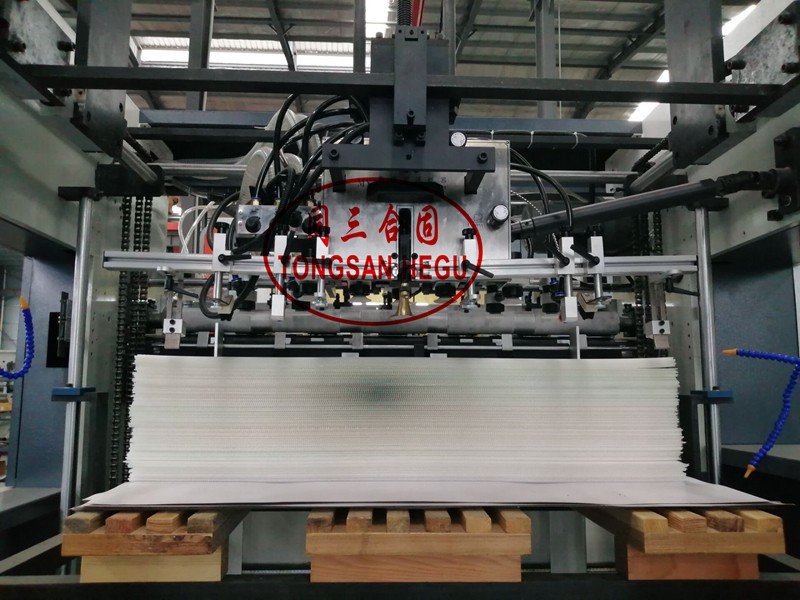

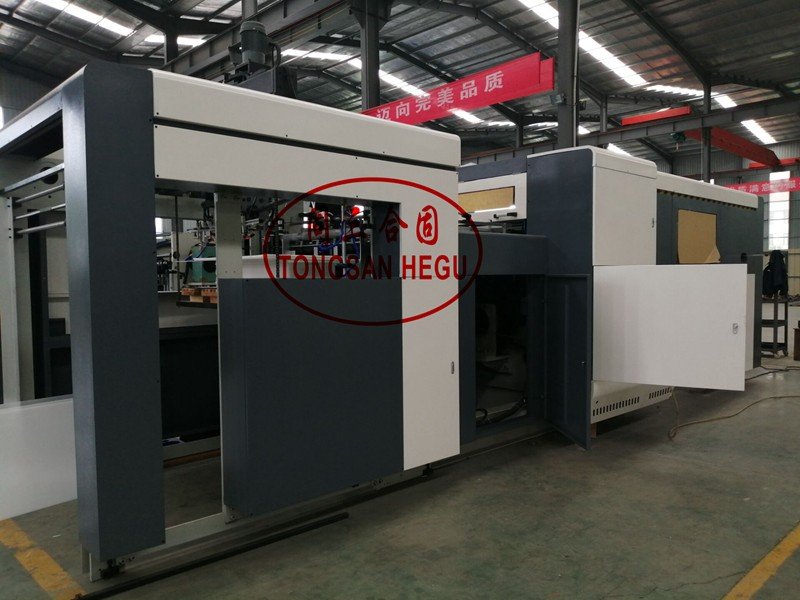

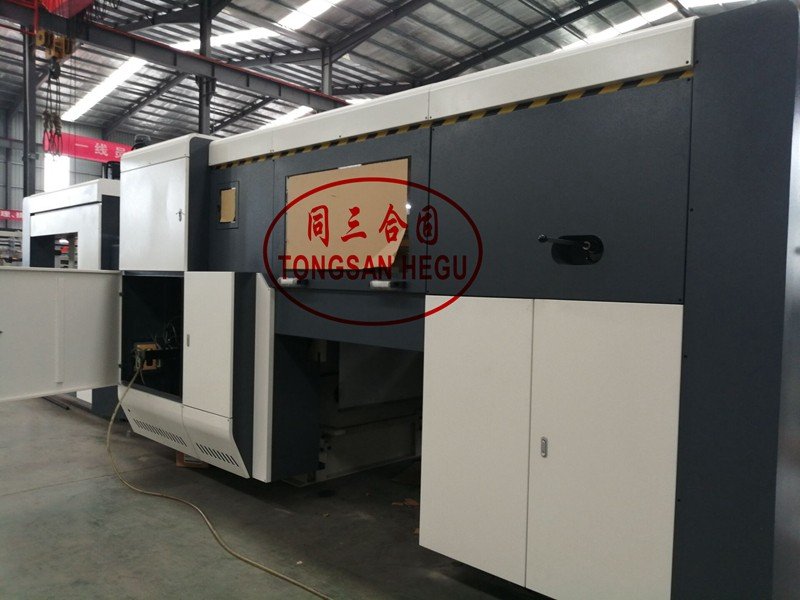

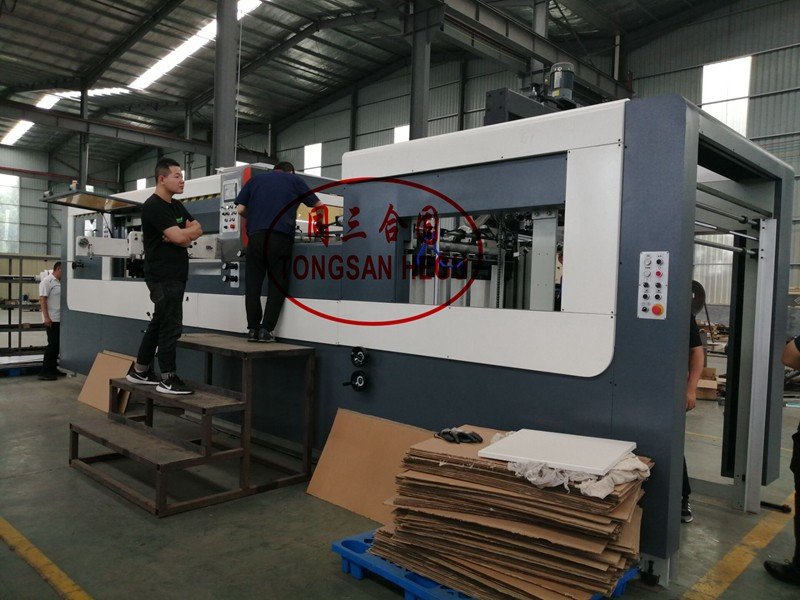

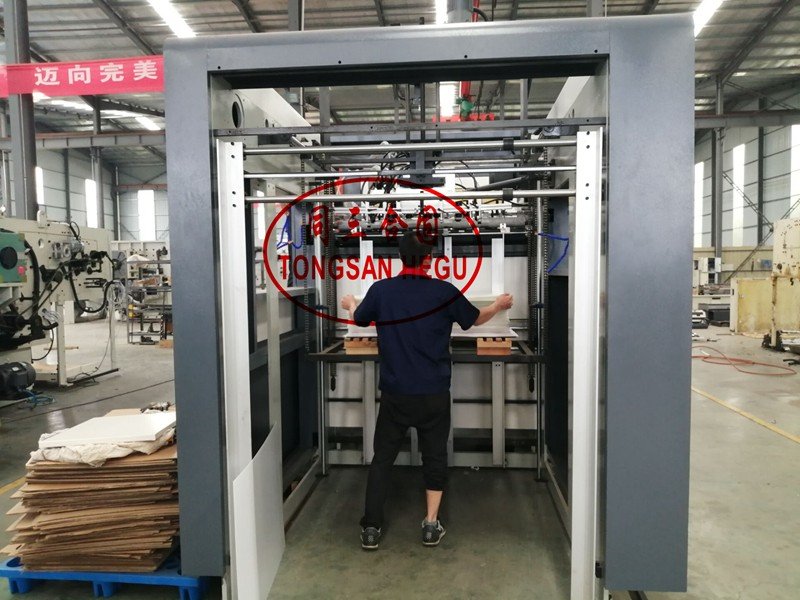

Automatic die cutting machine

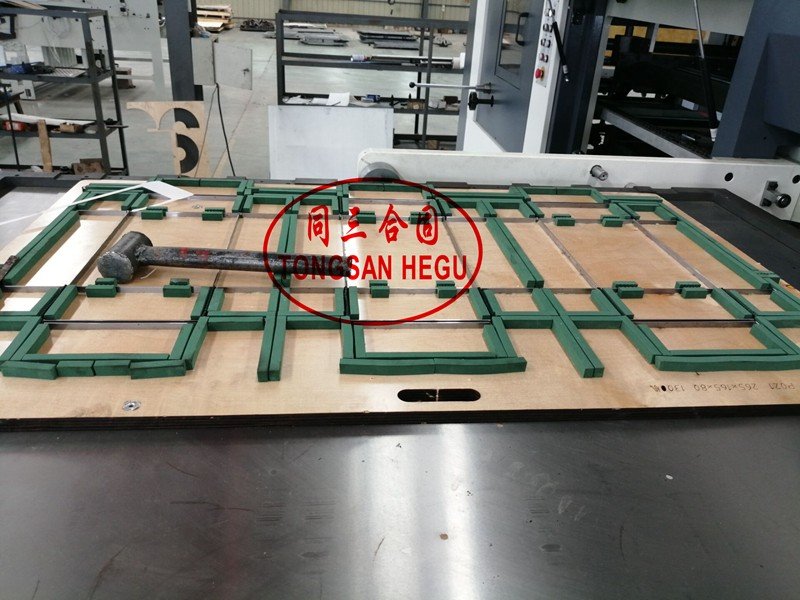

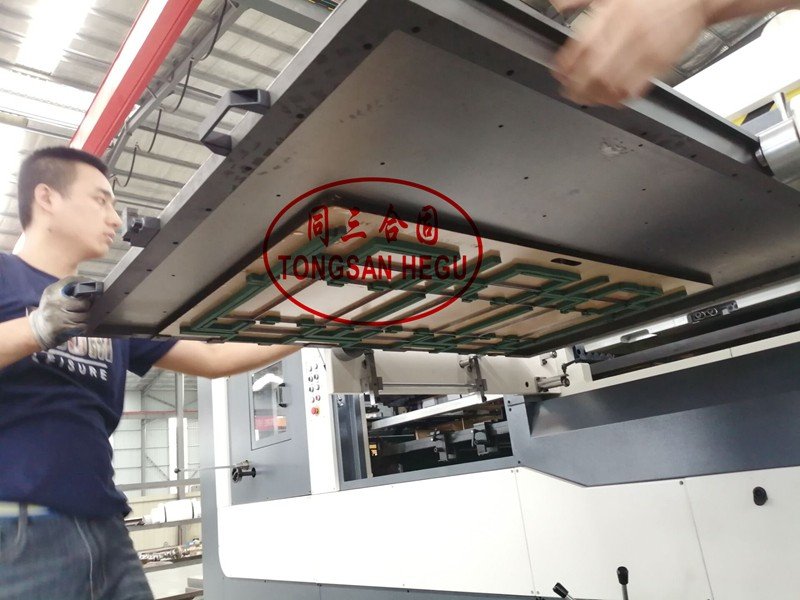

This automatic die cutting machine is suitable for PP corrugated sheet and carton sheet die cutting for making corrugated box. it is flat to flat die cutting by pressing cutting template.
it is high speed die cutting machine with automatic function, the speed can be more than 60pcs/minute.

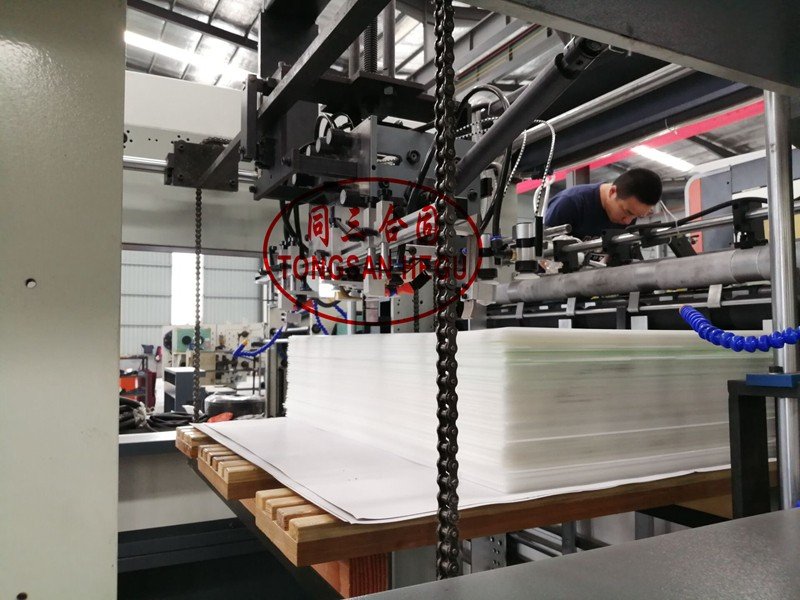

it also equip with cutting wastage automatic collection system.
Item | Parameters |
Model | MY-1300 |
The max sheet size （mm） | 1320*980mm |
The max die cutting size （mm） | 1300*960mm |
The max waste cleaning size（mm） | 1300*940mm |
The min die cutting size （mm） | 350*450mm |
The min mouth size（mm） | 6-8mm |
The max die cutting pressure （T） | 350N/cm² |
Application sheet（mm） | Corrugated sheet thickness < 7mm |
The max line speed（sheet/hour） | 4600 sheets/h |
The max feed sheets height（mm） | 1400mm(above the level) |
The max sheets collection height（mm） | 1250mm(above the level) |
Main motor power （kw） | 11 kw |
Total power | ～18 kw |
Machine weight | ～18.5T |
Machine overall size | 8545*4300*2346mm |
