SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, andsmooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).

Description

Small diameter high speed single wall corrugated pipe making machine

Plastic telescopic corrugated shrinkable pipe production line, plastic telescopic bellows shrinkable pipe equipment, folding drainage pipe production line,wash basin drainage pipe production line.

Qingdao Tongsan Plastic Machinery Co., Ltd. is located in Jiaozhou City, Qingdao, focusing on the plastic pipe extrusion
production line. The telescopic corrugated shrinkable pipe production line is one of our main products. The machine produce pipe  fast and well formed, and we can provide different models according to the pipe diameter and material.


Plastic telescopic bellows corrugated shrinkable  pipe use: lavatory sewage deodorization pipe, folding exhaust pipe, etc.Plastic telescopic corrugated pipe production process: automatic feeding machine - extruder - head - forming machine - shrinking machine - cutting machine - stocking

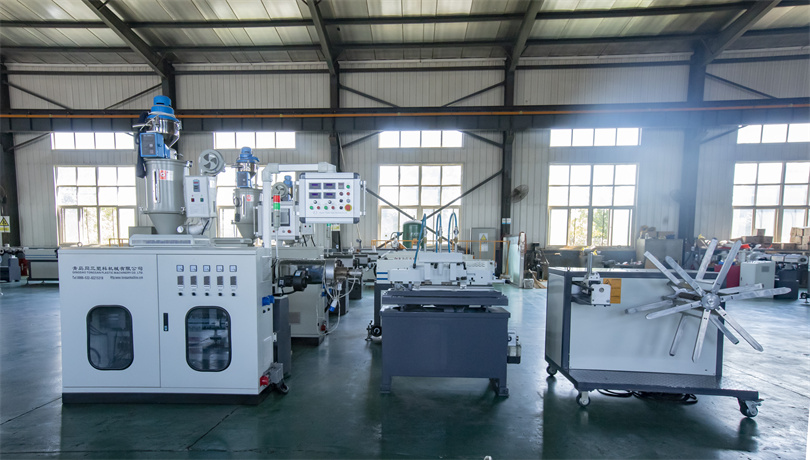

IMG_2743


Machine details SJ45 platic corrugated pipe making machines

Details Images

1,SJ45/30 single screw extruder

Adopt with Siemens motor, equip automatic loader and hopper dryer

2, vacuum forming machine

1. water cooling under template, wind cooling on machine two sides. two types cooling method to guarantee
production speed2. vacuum forming to guarantee good product quality.

3,mould block:

1. make mould by our own CNC machine to control the whole line quality2. mould material: 40Cr with vacuum channel
3. mould design: according to customer request

4,automatic winding machine

Aotomatic winding with Servo motor and PLC controler
