SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, andsmooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).

Description

Plastic corrugated pipe extrusion machine manufacturing electric conduit cable



Model

SJ45

SJ50

SJ65

SJ65 high speed

Diameter

5-14mm

9-32mm

16-50mm

9-50mm

Quantity of mold blocks

42 pairs

50 pairs

50 pairs

72 pairs

Production speed

4-10m/min

4-10m/min

16-50m/min

20-30m/min

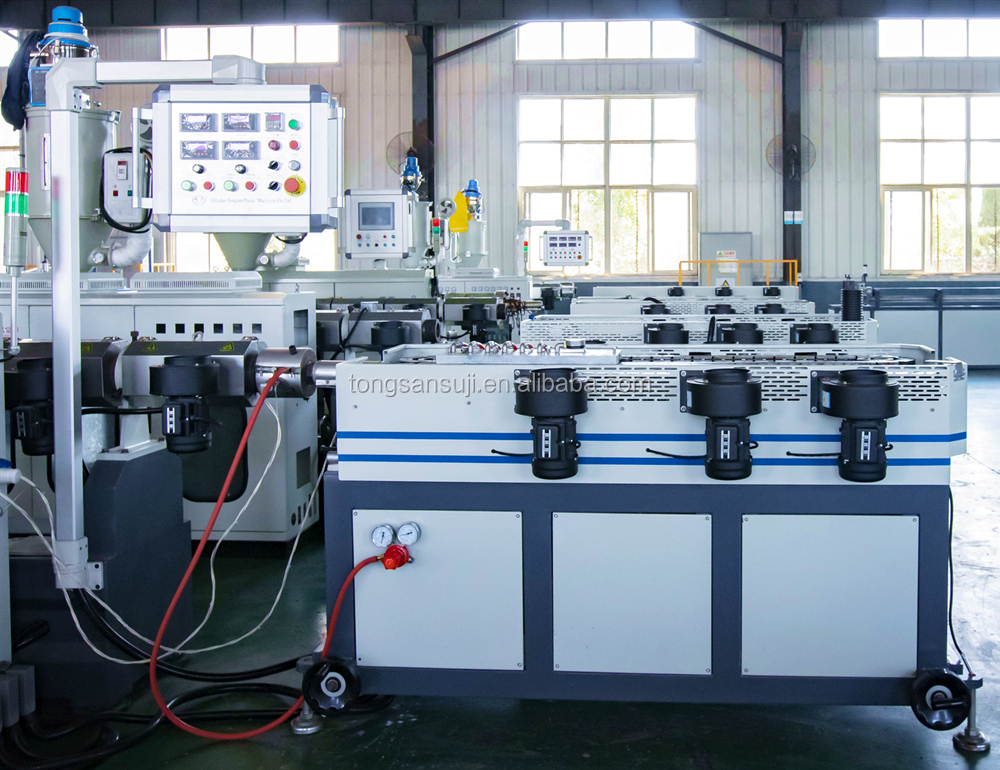

high speed corrugated pipe machine

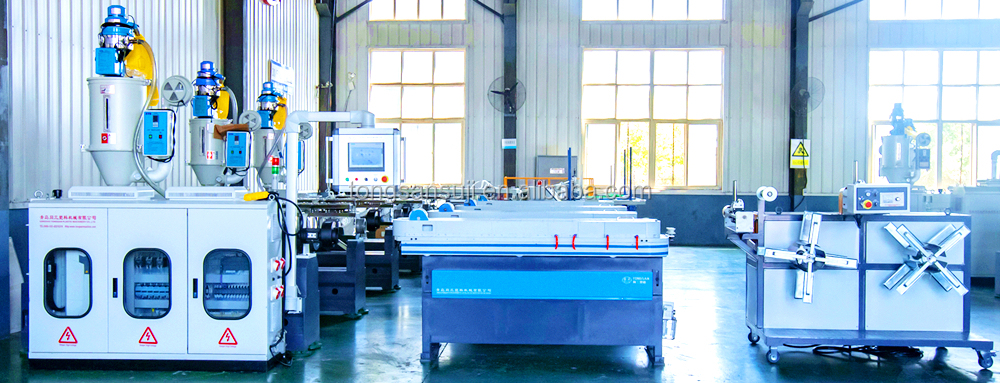

Pictures for high speed single wall corrugated pipe machine, 20-30m/min speed

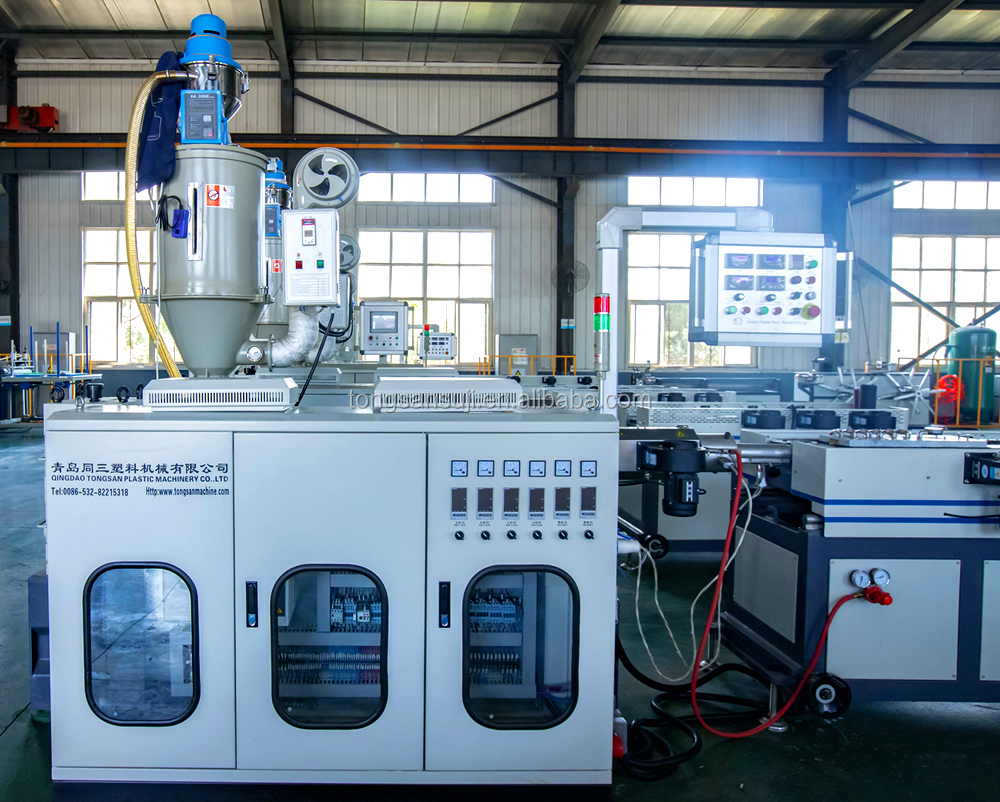

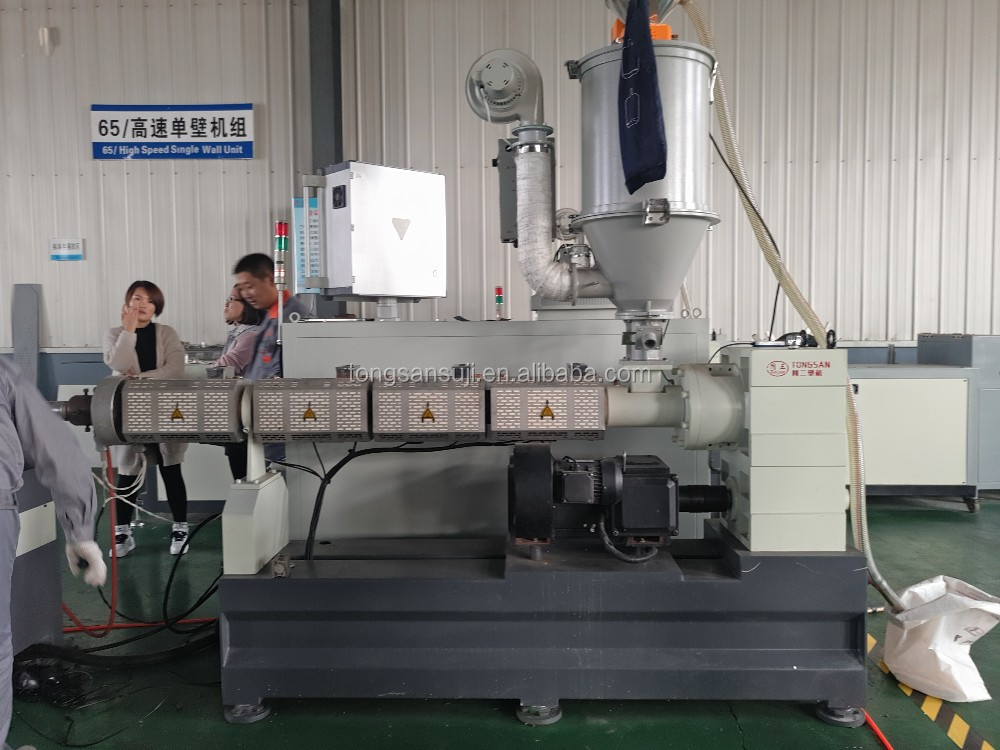

High quality single screw extruder

with auto feeding device and drying hopper

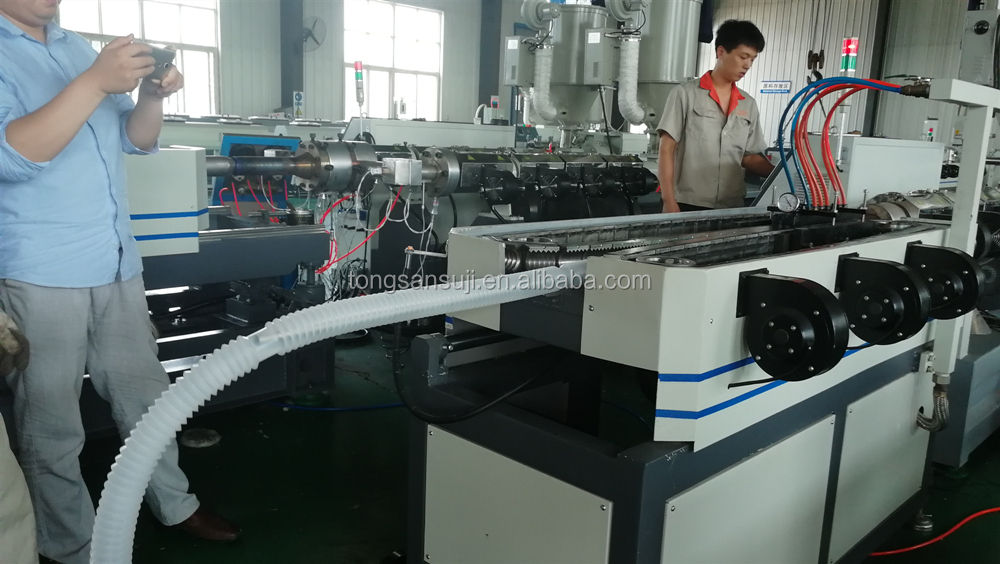

high speed forming machine for corrrugated pipe machine

20-30meter/minute speed.

with water cooling

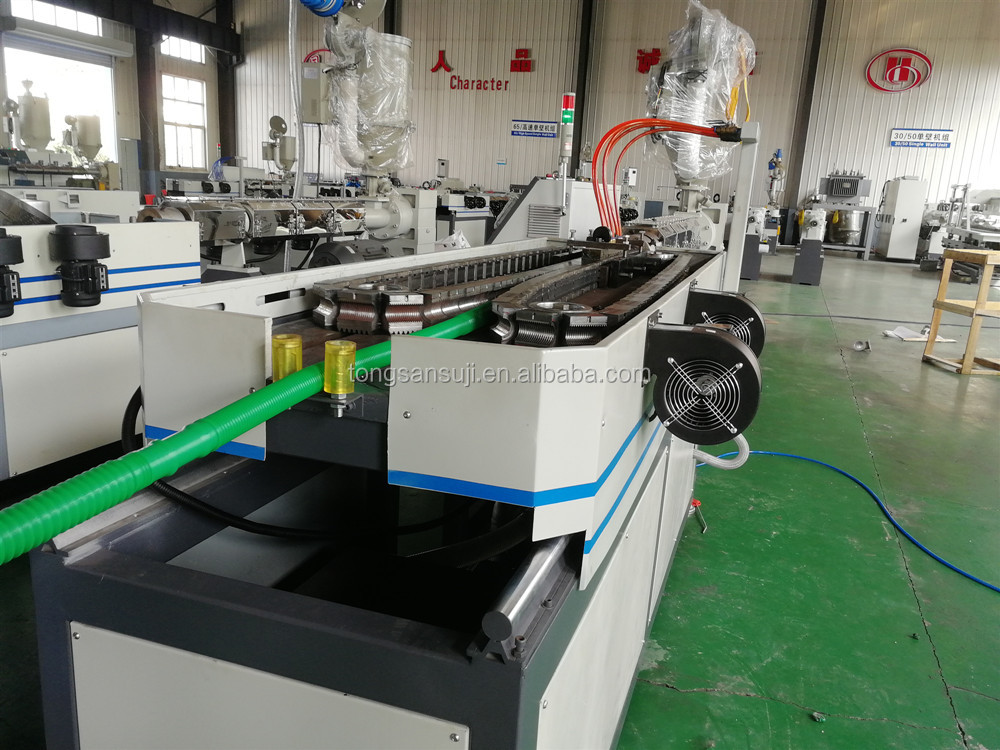

high speed mold for corrugated pipe machine

material: 40 cr with nitrating

mold quantity: 72 pairs

cavity: double size on same mold

speed: 20-30meter/minute

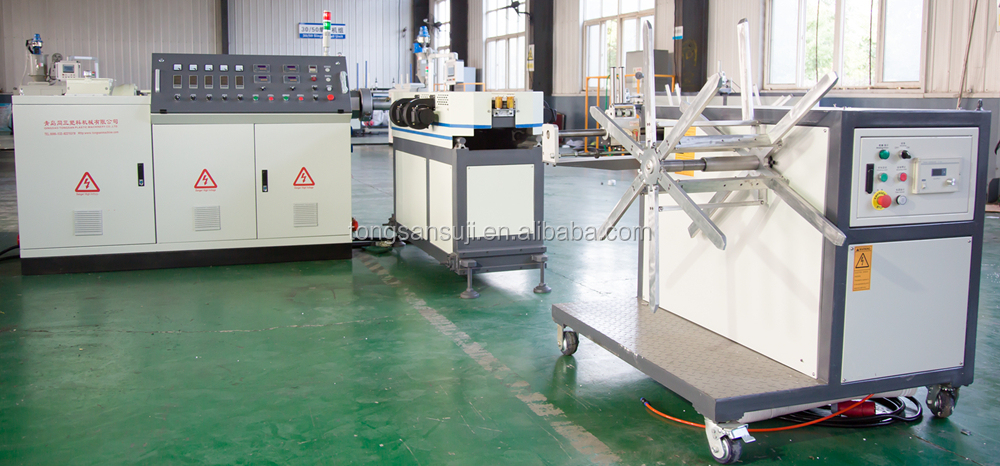

Normal speed corrugated pipe machine

high speed mold for corrugated pipe machine

1, Single screw extruder for plastic corrugated pipe machine:

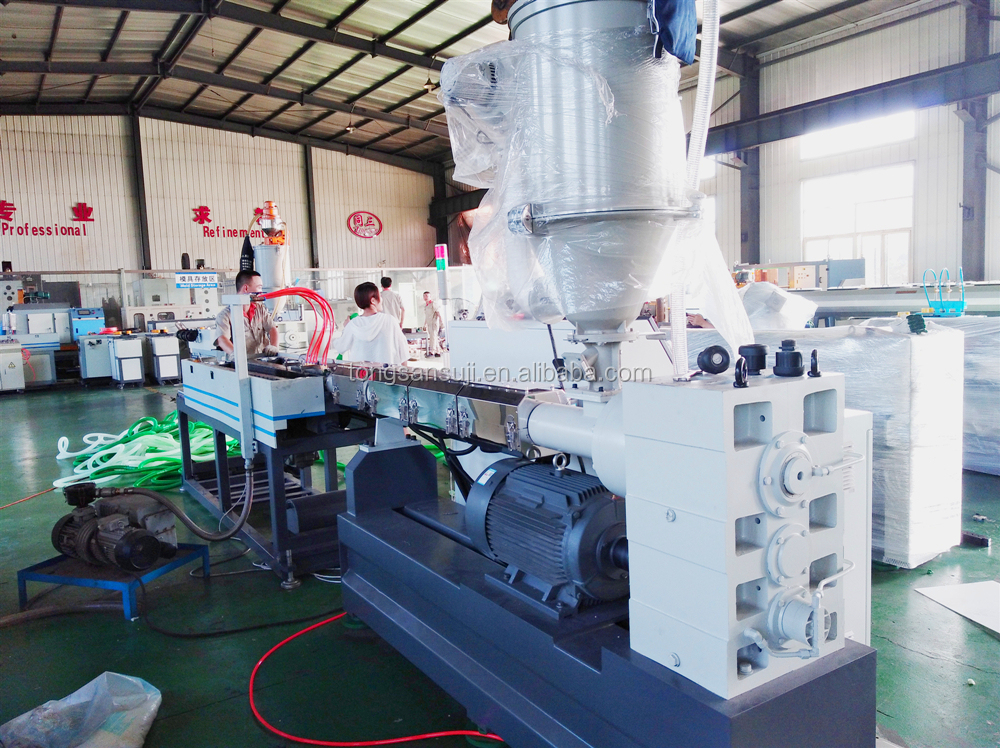

Extruder for corrugated pipe machine

Single screw extruder with electric control, auto vacuum feeding, drying hopper

4-10m/min Forming machine and mold



Compromise Joint pipe machine

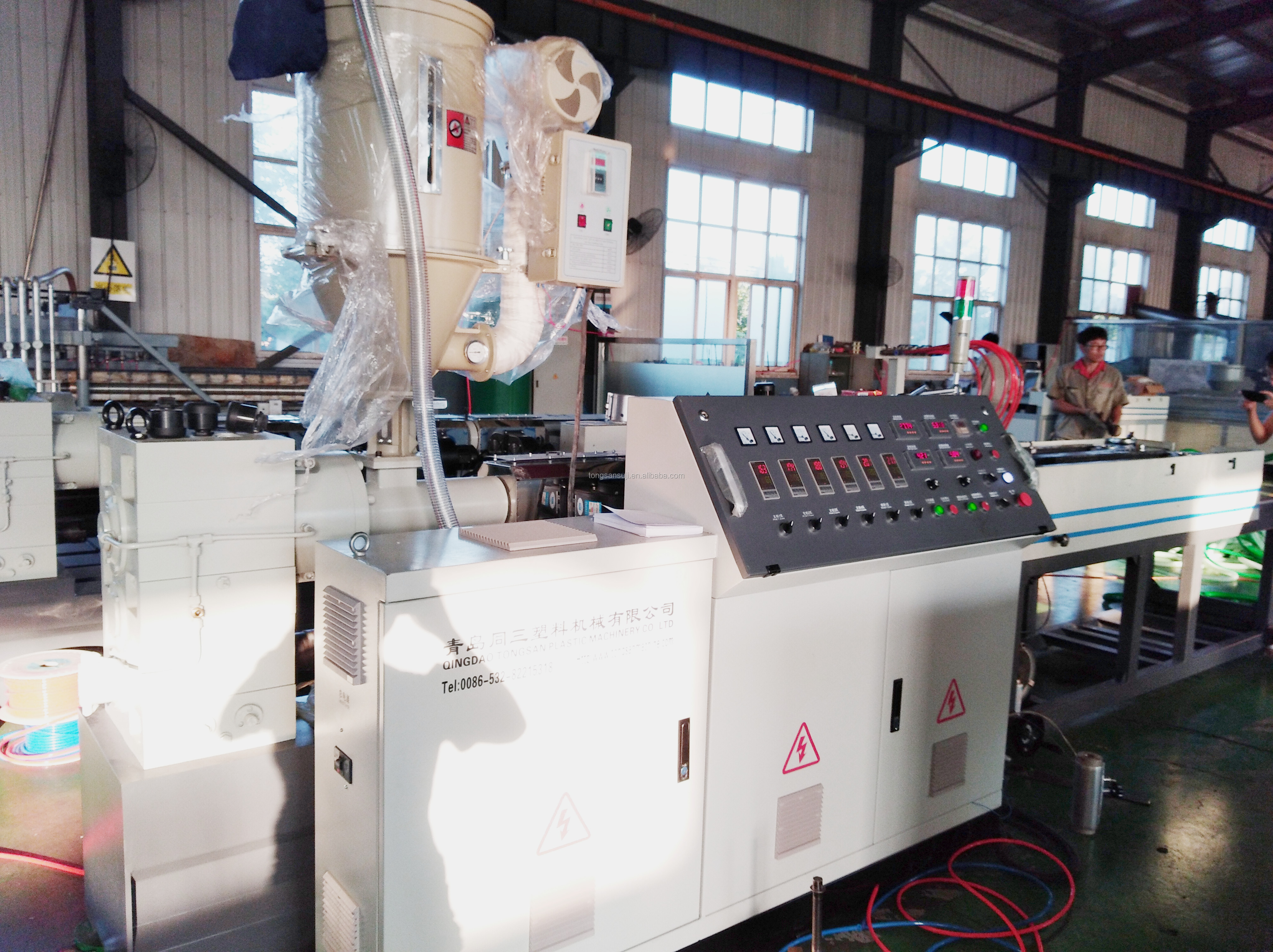

single screw extruder for compromise joint corrugated pipe making machine


With auto feeding device and drying hopper

Joint pipe forming machine and mold

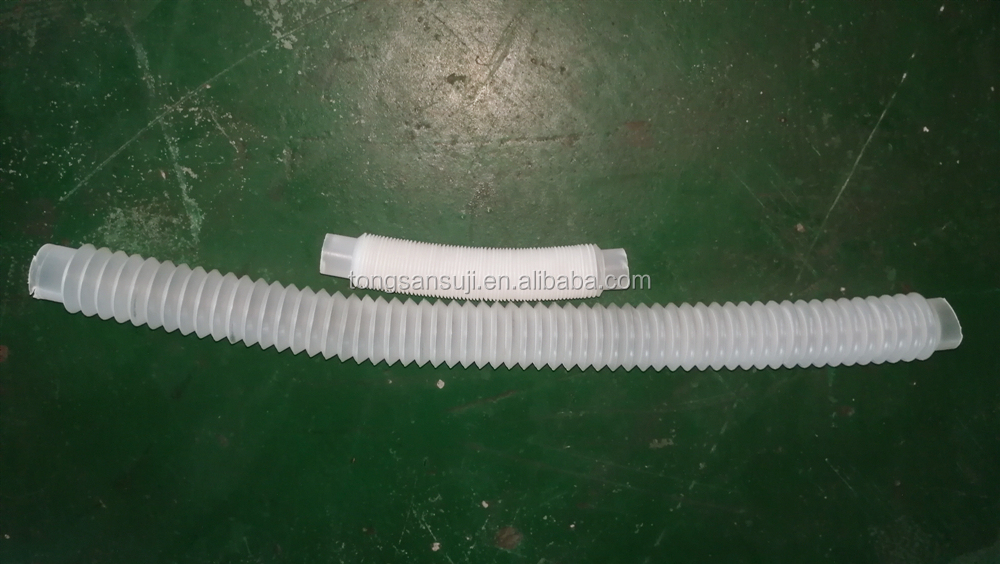

Joint pipe made by this corrugated pipe machine


Extension pipe forming machine and mold

Extension pipe made by this corrugated pipe machine
