This Plastic Single Wall Corrugated Pipe extrusion machine made by Qingdao Tongsan Plastic Machinery
Company is used to produce PP, PE, PVC, EVA, PA and other material single-wall corrugated pipes continuously.

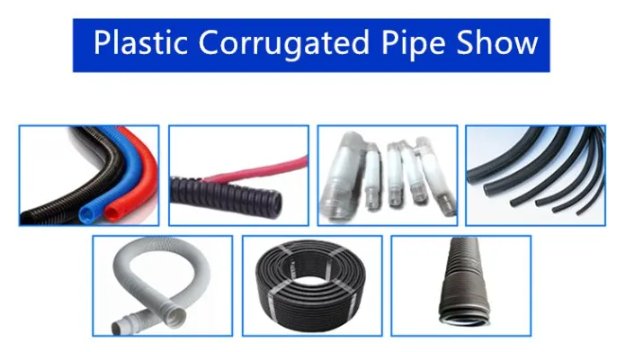

Plastic single wall corrugated pipes have features of strong thermo-stability, corrosion resistance, abrasion resistance, high intensity, good flexibility, etc.
![]()
Single wall corrugated pipes are widely applied in many fields such as electrical thread-passing pipes, circuit of machine tool,protective pipe of lamps, water pipes in air conditioner, washing machine, bathroom, etc.
Pipe diameter range | 4.5mm-12mm | 9mm-32mm | 12mm-63mm | 32mm-110mm | 50mm-160mm |
Model of extruder | SJ45 | SJ50 | SJ65 | SJ75 | SJ90 |
Production capacity | 20-30kg/h | 40-50kg/h | 60-70kg/h | 70-90kg/h | 100-120KG/H |
Power of extruder | 7.5kw | 15kw | 30kw | 37kw | 55KW |
Power of forming machine | 1.1kw | 1.5kw | 4kw | 4kw | 4KW |
Pairs of modules | 42pairs | 50pairs | 50pairs | 72pairs | 72pairs |
Cooling mode | Wind&Water cooling | Wind&Water cooling | Wind&Water cooling | Wind&Water cooling | Wind&Water cooling |
Production speed | 6-10m/min | 8-12m/min | 8-12m/min | 2-6m/min | 2-6m/min |
